EIGRP Loop-Free Alternate (LFA) Fast Reroute (FRR)

Lessons Discussion
21

Hi.
I use EVE-NG, and vIOS Node. Which devise do you use?

22

Hello Yoichi

For most of the labs in the lessons on this site, Rene uses Cisco’s CML. Specifically, the router version being used is the following:

Cisco IOS Software, IOSv Software (VIOS-ADVENTERPRISEK9-M), Version 15.9(3)M2, RELEASE SOFTWARE (fc1)

Do you have any problems with the image and emulator you are using?

I hope this has been helpful!

Laz

23

Hi Laz

Thank you for your reply.
I am using EVE-NG as emulator. When I used “vIOS” as Node in this lesson,
vIOS don’t support the command fast-reroute per-prefix all.
Next, I changed the node, “CSR1000v”. Then, CSR1000v support the command.
Everything is good! Thank you so much!

Yoichi

1 Like
24

A post was merged into an existing topic: OSPF Loop-Free Alternate (LFA) Fast Reroute (FRR)

25

Hello Team,

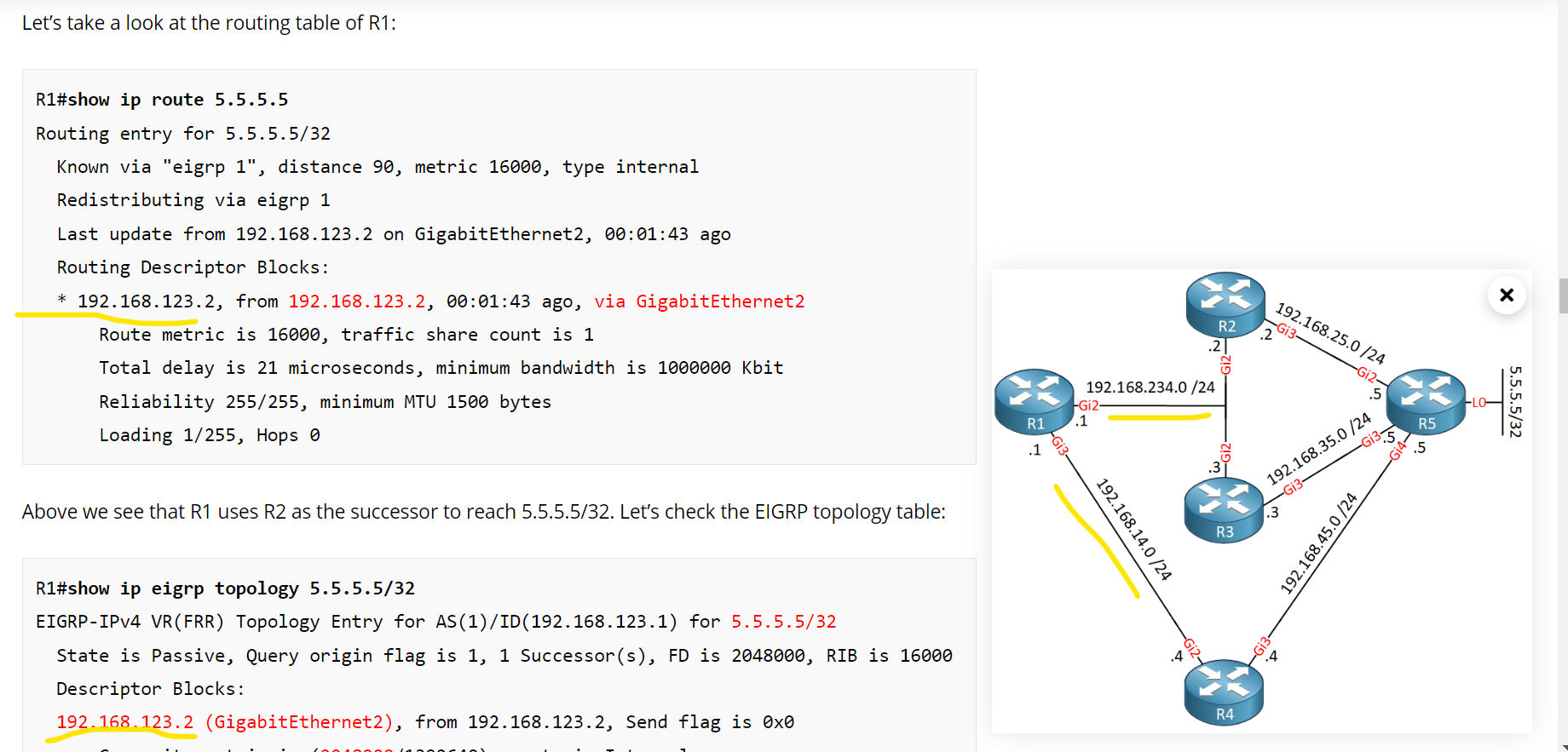

It seems that the IP addresses are not the same as the ones you configured in the routers and the topology for the interface disjoint section. Could you please fix this?

image1840×883 178 KB

26

Hello Sathish

Yes, you’re absolutely right, I will let Rene know to make the necessary adjustments…

Thanks for pointing that out!

Laz
