Dear Sir,

In summary,

this Anapaya Gateway device needs to install in SEC VLAN -182 network 10.25.182.0/23 with IP address 10.25.183.2 at Level 6
Currently NEXUS Core Switch HSRP configured as VIP 10.25.182.1 as gateway.
10.25.182.2 Primary Nexus and Secondary 10.25.182.3

Those client IPs mentioned below (same VLAN as Anapaya gateway) will point to 10.25.183.2 as the gateway out to internet (to SCION network).

Core switch default Route point to Firewall. Firewall default Route point to Router.

Future plan is to have Level 8 VLAN 184 network 10.25.184.0/23 (different VLAN) also point to 10.25.183.2. Verify this requirement whether it is possible.

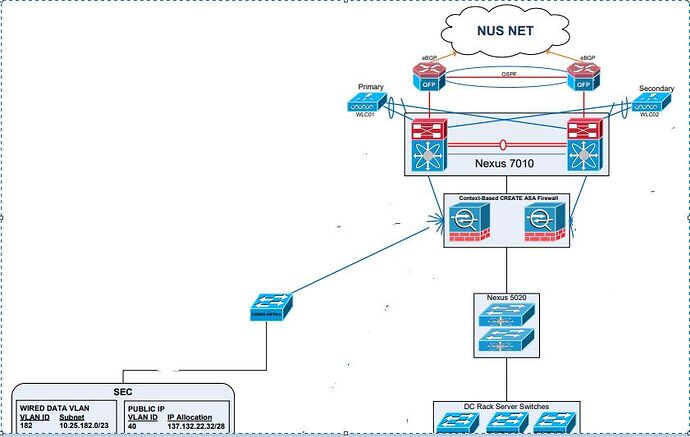

Attached existing network diagram for your kind reference.

NETDI
NETDI841×533 48.3 KB

Please would like to know whether below configuration is viable?

Thank you

Regards,
Mani

2

Hello Mani

What you describe seems reasonable and possible. You mention that the future plan is to have the 10.25.184.0/23 network also point to 10.25.183.2, but this is not in the same subnet, and routing must be in place to get there. That routing can be implemented in either the firewall pair or the pair of nexus 7010s.

I’m not quite sure if I am adequately answering your question, because even with the diagram, it is not quite clear what you want to achieve. If you need further help or guidance, can you clarify so that we can help you further?

I hope this has been helpful!

Laz
